Specifications
Nominal V – DC 11.1 V
Weight – 5.35 oz (151.6 g)
Volume (excl wires) – 4.72 in³ (77.35 cm³)
Claimed capacity – 2600 mAh

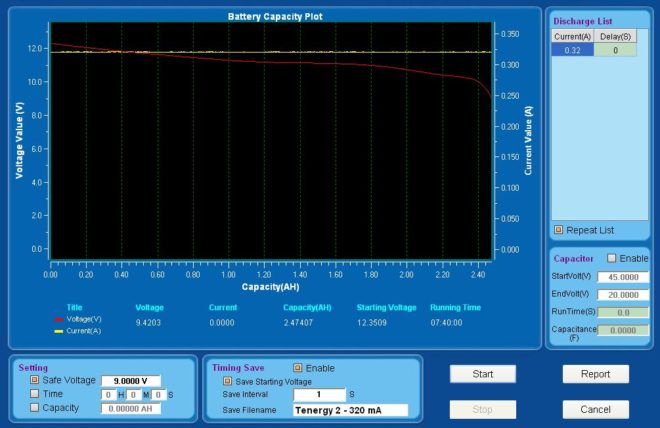

320 mA (0.12 C) discharge rate – 2474 mAh capacity, running time 7:40:00
1300 mA (0.5 C) discharge rate – 2468 mAh capacity, running time 1:53:04
2100 mA (0.81 C) discharge rate – 2445 mAh capacity, running time 1:09:22
TR Cycle – (alt. 0.18-1.8 A discharge) – 2454 mAh capacity, running time 3:22:32
Measured Energy – 27.71 Wh @ 0.12 C rate
Measured Specific Energy – 5.18 Wh/oz (183 Wh/kg)
Measured Energy Density – 5.87 Wh/in³ (358 Wh/L)
Notes
This was another Tenergy 34124 which was over a year old and had been cycled quite a few times, yet it delivered within 5% of it’s new mAh rating.
