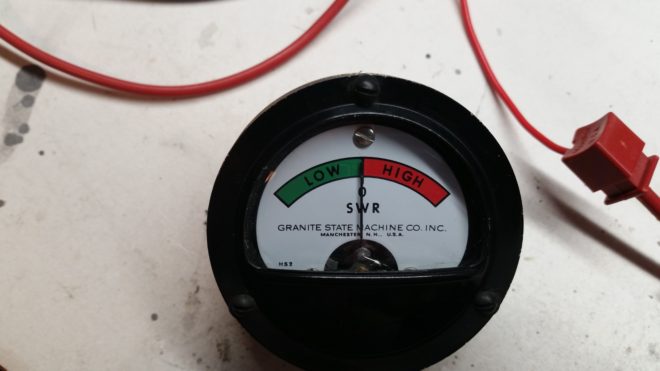

Maybe someone viewing this can identify the piece of equipment it came from? And maybe even describe why a certain amount of SWR is OK to call “0”? Or maybe the meter reads capacitive and inductive reactance as low and high? Or as David, K0LUM suggests: “SWR” may not even mean Standing Wave Ratio…maybe?
Somehow the email address was removed from my comment. It is sales@granitestatemfg.com
Different company name, but may have changed over the years, thanks!
Howie – WA4PSC
Looks like it’s the same company. Apparently they made various ship antenna and matching systems for the Navy at one point. Stuff like this: http://www.virhistory.com/navy/manuals/sra16-man-92839.pdf
Neat.
Thanks for the link, I love old military stuff, used to have a surplus WWII radar test set when I was young. It made a dandy Oscope…
Howie – WA4PSC
If you go here and scroll down to the AN/SRA-18 Antenna tuner (made by Granite and someone else), it kinda looks like one of the meters for the control monitor unit for that system. http://www.virhistory.com/navy/xmtr-tuner.htm
Great find! Hard to see detail in some of those pics, but I think you are on to the right place…
Thanks!
Howie – WA4PSC
