Specifications
Nominal V – DC 11.1 V
Weight – 5.24 oz (142.5 g)
Volume (excl wires) – 4.70 in³ (77.02 cm³)
Claimed capacity – 2600 mAh

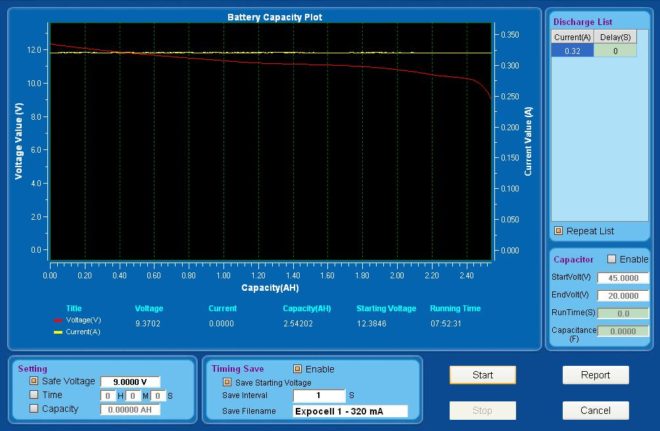

320 mA (0.12 C) discharge rate – 2542 mAh capacity, running time 7:52:31
1300 mA (0.5 C) discharge rate – 2515 mAh capacity, running time 1:55:13
2100 mA (0.81 C) discharge rate – 2490 mAh capacity, running time 1:10:40
TR Cycle – (alt. 0.18-1.8 A discharge) – 2514 mAh capacity, running time 3:27:14
Measured Energy – 28.22 Wh @ 0.12 C rate
Measured Specific Energy – 5.39 Wh/oz (198 Wh/kg)
Measured Energy Density – 6.00 Wh/in³ (366 Wh/L)
Notes
This Expocell pack was new and had been cycled twice before testing, it delivered within 3% of it’s mAh rating.
