Specifications
Chemistry – Li-ion
Nominal V – DC 11.1 V
Weight – 5.20 oz (148.1 g)
Volume (excl wires) – 4.35 in³ (71.28 cm³)
Claimed capacity – 3000 mAh

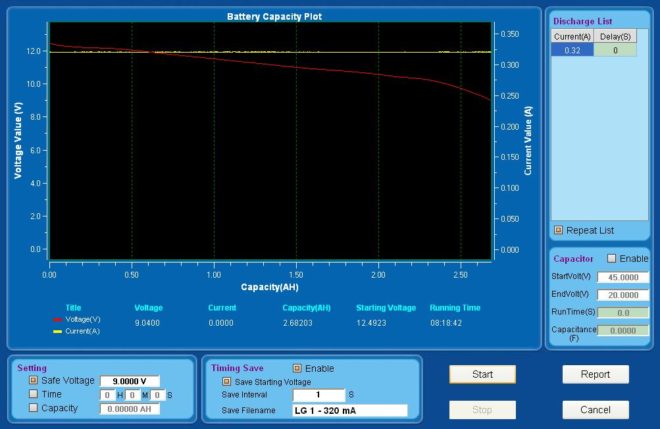

320 mA (0.12 C) discharge rate – 2682 mAh capacity, running time 8:18:42
1300 mA (0.5 C) discharge rate – 2661 mAh capacity, running time 2:01:52
2100 mA (0.81 C) discharge rate – 2554 mAh capacity, running time 1:12:27
TR Cycle – (alt. 0.18-1.8 A discharge) – 2633 mAh capacity, running time 3:37:14
Measured Energy – 29.77 Wh @ 0.12 C rate
Measured Specific Energy – 5.73 Wh/oz (201 Wh/kg)
Measured Energy Density – 6.84 Wh/in³ (418 Wh/L)
Notes
This LG pack was assembled from three new cells and delivered 11% less than it’s new mAh rating.
