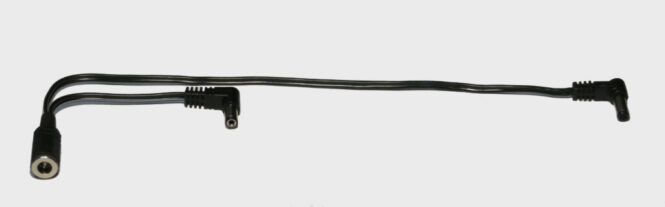

5.5 mm x 2.1 mm DC Power Splitter
P/N: 33-100 Price: $19.90 Shipping Status: Immediate, In Stock.
Allows you to power any two devices with 5.5 x 2.1 mm DC power jacks from one PAE-Kx33 Low-RFI DC Power Supply. Can be used to power both the Elecraft KX3 and PX3 simultaneously from one Kx33.
- 5.5 mm x 2.1 mm DC power jack.
- 2 x 5.5 mm x 2.1 mm right-angle DC power plugs.
- Fully molded jack and plugs with strain reliefs.
- Correct length to keep cabling neat: 120 mm to KX3, 300 mm to PX3.
- Low resistance for low voltage drop.
- KX3 plug – 0.020 Ω each conductor, 0.04 Ω total for 0.1 V drop max at 2.6 A KX3 transmit current.
- PX3 plug – 0.05 Ω each conductor, 0.1 Ω total for 0.014 V drop at
0.140 mA PX3 current. - 1 year warranty against manufacturing defects.

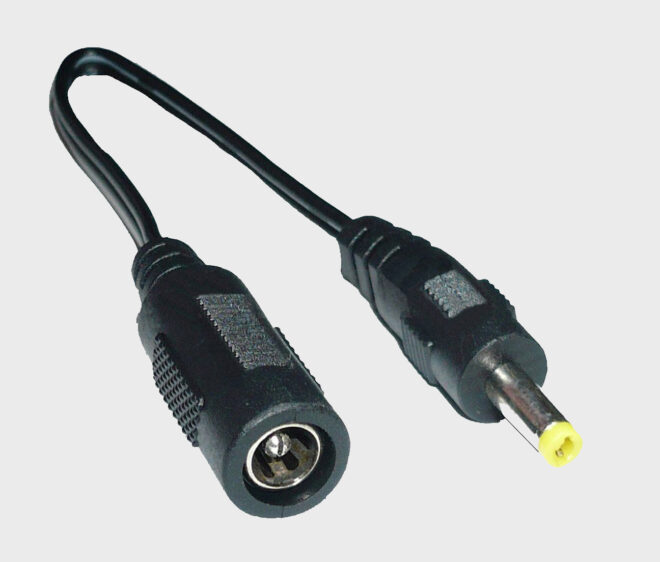

5.5 mm x 2.1 mm Female to 4.0 mm x 1.7 mm Male DC Power Adapter
P/N: 33-120 Price: $6.90 Shipping Status: Immediate, In Stock.
Adapts the output of the PAE-Kx33 for use with the Yaesu FT-817 and others.
- 5.5 mm x 2.1 mm DC power jack.
- 4.0 mm x 1.7 mm DC power plug.
- 170 mm (6.7″) tip to tip.
- Recessed center on plug to eliminate shorting.
- Low resistance for low voltage drop.
- 0.02 Ω each conductor, 0.04 Ω total resistance.
- 1 year warranty against manufacturing defects.
4.0 mm x 1.7 mm Female to PowerPole DC Power Adapter
P/N: 33-130 Price: $9.90 Shipping Status: Out of Stock, inquire.
Adapts the output of the Yaesu NC-72 or PA-48 charger to a PowerPole converted FT817/818.
- 4.0 mm x 1.7 mm DC power jack.
- 15 A PowerPole DC power plug.
- 170 mm (6.7″) tip to tip.
- Low resistance for low voltage drop.
- 0.02 Ω each conductor, 0.04 Ω total resistance.
- 1 year warranty against manufacturing defects.
5.5 mm x 2.1 mm Female to 5.5 mm x 2.5 mm Right-Angle Male DC Power Adapter
P/N: 33-140 Price: $6.90 Shipping Status: Immediate, In Stock.
Adapts the output of the PAE-Kx33 for use with the Icom IC-705, Xiegu X6100, Flex1500 and others.
- 5.5 mm x 2.1 mm DC power jack.
- 5.5 mm x 2.5 mm DC power plug.
- 170 mm (6.7″) tip to tip.
- Low resistance for low voltage drop.
- 0.02 Ω each conductor, 0.04 Ω total resistance.
- 1 year warranty against manufacturing defects

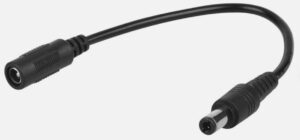

5.5 mm x 2.1 mm Female to 6.3 mm x 3.0 mm Male DC Power Adapter
P/N: 33-149 Price: $6.90 Shipping Status: Immediate, In Stock.
Adapts the output of the PAE-Kx33 for use with the Icom R8500 and others.
- 5.5 mm x 2.1 mm DC power jack.
- 6.3 mm x 3.0 mm DC power plug.
- 43 mm (1.7″) tip to tip.
- Low resistance for low voltage drop.
- 0.01 Ω each conductor, 0.02 Ω total resistance.
- 1 year warranty against manufacturing defects.
5.5 mm x 2.1 mm Female to 6.0 mm x 1.4 mm Male DC Power Adapter
P/N: 33-150 Price: $6.90 Shipping Status: Immediate, In Stock.
Adapts the output of the PAE-Kx33 for use with the Icom R8600 and others.
- 5.5 mm x 2.1 mm DC power jack.
- 6.0 mm x 1.4 mm DC power plug.
- 43 mm (1.7″) tip to tip.
- Low resistance for low voltage drop.
- 0.01 Ω each conductor, 0.01 Ω total resistance.
- 1 year warranty against manufacturing defects.
5.5 mm x 2.1 mm Female to Mini-Tamiya DC Power Adapter
P/N: 33-155 Price: $9.90 Shipping Status: Immediate, In Stock
Adapts the output of the PAE-Kx33 for use with any DC 12-14 V device requiring a Mini-Tamiya connector such as the Xiegu G90.
- 5.5 mm x 2.1 mm DC power jack.
- 2-pin Mini-Tamiya DC power plug.
- 43 mm (1.7″) tip to tip.
- Low resistance for low voltage drop.
- 0.01 Ω each conductor, 0.01 Ω total resistance.
- 1 year warranty against manufacturing defects.
5.5 mm x 2.1 mm Female to PowerPole DC Power Adapter
P/N: 33-160 Price: $9.90 Shipping Status: Immediate, In Stock.
Adapts the output of the PAE-Kx33 for use with any DC 12-14 V device requiring a PowerPole connector such as the Elecraft K3 or Xiegu G90 converted to APP.
- 5.5 mm x 2.1 mm DC power jack.
- 15 A PowerPole DC power plug.
- 170 mm (6.7″) tip to tip.
- Low resistance for low voltage drop.
- 0.02 Ω each conductor, 0.04 Ω total resistance.
- 1 year warranty against manufacturing defects
PowerPole to 5.5 mm x 2.1 mm Male DC Power Adapter
P/N: 33-165 Price: $9.90 Shipping Status: Immediate, In Stock.
Adapts a PowerPole source for use with any DC 12-14 V device requiring a 5.5 mm x 2.1 mm DC power plug connector like the Elecraft KX1/KX2/KX3 .
- 5.5 mm x 2.1 mm DC power plug.
- 15 A PowerPole DC power plug.
- 170 mm (6.7″) tip to tip.
- Recessed center on plug to eliminate shorting.
- Low resistance for low voltage drop.
- 0.02 Ω each conductor, 0.04Ω total resistance.
- 1 year warranty against manufacturing defects.
PowerPole to 5.5 mm x 2.1 mm Right-Angle Male DC Power Adapter
P/N: 33-166 Price: $9.90 Shipping Status: Immediate, In Stock.
Adapts a PowerPole source for use with any DC 12-14 V device requiring a 5.5 mm x 2.1 mm right-angle DC power plug connector like the Elecraft KX1/KX2/KX3 .
- 5.5 mm x 2.1 mm right-angle DC power plug.
- 15 A PowerPole DC power plug.
- 170 mm (6.7″) tip to tip.
- Recessed center on plug to eliminate shorting.
- Low resistance for low voltage drop.
- 0.02 Ω each conductor, 0.04Ω total resistance.
- 1 year warranty against manufacturing defects.
Cigarette Lighter to 5.5mm x 2.1mm Male DC Power Adapter
P/N: 33-170 Price: $9.90 Shipping Status: Immediate, In Stock.
Adapts a standard vehicle cigarette lighter socket for use with any 12-14 VDC device requiring a 5.5 mm x 2.1 mm DC power plug connector like the Elecraft KX1/KX2/KX3.
- Standard vehicle accessory/lighter plug fused for 3 A, power LED.
- 5.5 mm x 2.1 mm DC power plug.
- 1445 mm (49″) tip to tip.
- 0.23 Ω center conductor + fuse, 0.07 Ω shell, 0.3 Ω total resistance.
- 1 year warranty against manufacturing defects.
5.5 mm x 2.1 mm Female to GX12-2 DC Power Adapter
P/N: 33-175 Price: $12.90 Shipping Status: Immediate, In Stock.
Adapts the output of the PAE-Kx33 for use with any DC 12-14 V device requiring a 2-pin GX12 Plug such as the Lab599 TX-500.
- 5.5 mm x 2.1 mm DC power jack.
- 2-pin GX12-2 DC power plug.
- 43 mm (1.7″) tip to tip.
- Low resistance for low voltage drop.
- 0.01 Ω each conductor, 0.01 Ω total resistance.
- 1 year warranty against manufacturing defects.
28-piece DC Power Adapter Kit
P/N: 33-180 Price: $29.90 Shipping Status: Immediate, In Stock.
Adapts the output of the PAE-Kx33 for use with almost any device requiring DC 12-14 V power at up to 4 A. Take advantage of the clean power of the Kx33 to power your other devices.
- All 28 adapters have a 5.5 mm x 2.1 mm female jack.
- 2 organizers keep them in order.
- The following are the dimensions of the male plugs provided in the kit:
Male plug outside diameter / inside pin diameter
1: 7.9 mm x 1.0 mm
2: 7.4 mm x 1.0 mm round
3: 7.4 mm x 1.0 mm octahedron
4: 6.0 mm x 3.0 mm
5: 6.0 mm x 1.0 mm
6: 5.5 mm x 2.5 mm
7: 5.5 mm x 2.5 mm
8: 5.5 mm x 2.5 mm
9: 5.5 mm x 2.1 mm
10: 5.5 mm x 2.1 mm
11: 5.5 mm x 2.1 mm
12: 5.5 mm x 1.7 mm
13: 5.0 mm x 2.5 mm
14: 5.0 mm x 2.1 mm
15: 5.0 mm x 1.0 mm
16: 5.0 mm x 1.0 mm
17: 4.8 mm x 1.7 mm
18: 4.8 mm x 1.7 mm
19: 4.0 mm x 1.7 mm
20: 3.5 mm x 1.35mm
21: 3.0 mm x 1.0 mm
22: 2.5 mm x 0.7 mm x 10 mm
23: 2.5 mm x 0.7 mm x 8 mm
24：for apple
25: 4 pin female
26: 3 pin female
27: 3.5 mm mono plug
28: 2.5 mm mono plug
Elecraft K2 w/Battery Voltage Reducing Adapter
P/N: 33-220 Price: $18.90 Shipping Status: Immediate, In Stock.
Drops the output of the PAE-Kx33 0.4V for use with an Elecraft K2 with the internal battery option. For more information click here.
- Dual-wall marine-grade heatshrink encapsulated.
- 5.5 mm x 2.1 mm DC power jack.
- 5 A Schottky diode with correct voltage drop.
- 5.5 mm x 2.1 mm DC power plug.
- 170 mm (6.7″) tip to tip.
- 1 year warranty against manufacturing defects.
Right Angle AC Adapter
P/N: 33-510 Price $8.90 Shipping Status: Immediate, In Stock.
Replaces the Kx33’s AC cord, allowing the Kx33 to be mounted flush to the wall supported by the AC plug, eliminating the clutter of an AC cord.
- Standard US NEMA 1-15P plug.
- Standard ISC 60320-C7 jack.
- Right angle to mount Kx33 flush to the wall.
- Eliminates the clutter of an AC cord for the KX33
- Effectively turns the Kx33 into a ‘wall-wart’ style supply.
- 1 year warranty against manufacturing defects.
